Wireless 7-inch colour monitor & camera kit • CV-C7WS
Wireless kit made of a wireless 7-inch monitor with 2 inputs and one 2.4 GHz. wireless rear-view camera with infrared LEDs.
Monitor : TFT LCD 7-inch screen Ref. CVM-C7WS
– 175 mm diagonal / no speaker
– Power supply : 12 à 30 V/DC
– Mechanical Vibration resistance: 10G
– Storage temperature: -30°C à + 80°C
– Operating temperature: -20°C à + 60°C
– Maximum humidity level : 90% max
– Retro-lighting of the monitor buttons
–Video system : PAL/NTSC
– Vertical or horizontal image display
– Automatic backlight compensation
– Simple of double display of the cameras images
– Pairing of the cameras by pressing one button
– Weight : 600 g
– Thickness : 32 mm

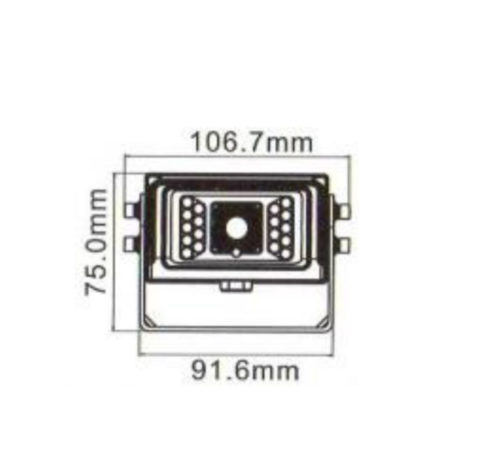

Camera : wireless colour CMOS. Ref. CVC-CWS
– No built-in microphone
– Minimum required light : 0 Lux (with LED IR operating)
– Range : 10 to 15 m
– Power supply : 12 ou 24 V/DC
– Consumption : 300 mA max
– Frequency : 2,4 GHz
– Resolution : 420 lignes TV
– Viewing angle : 115°
– Storage temperature: -30°C à + 80°C
– Operating temperature: -20°C à + 60°C
– Maximum humidity level : 95%
– Water resistance index : IP 67
– Mirror function through button at the back of the camera
– Weight : 500 g
