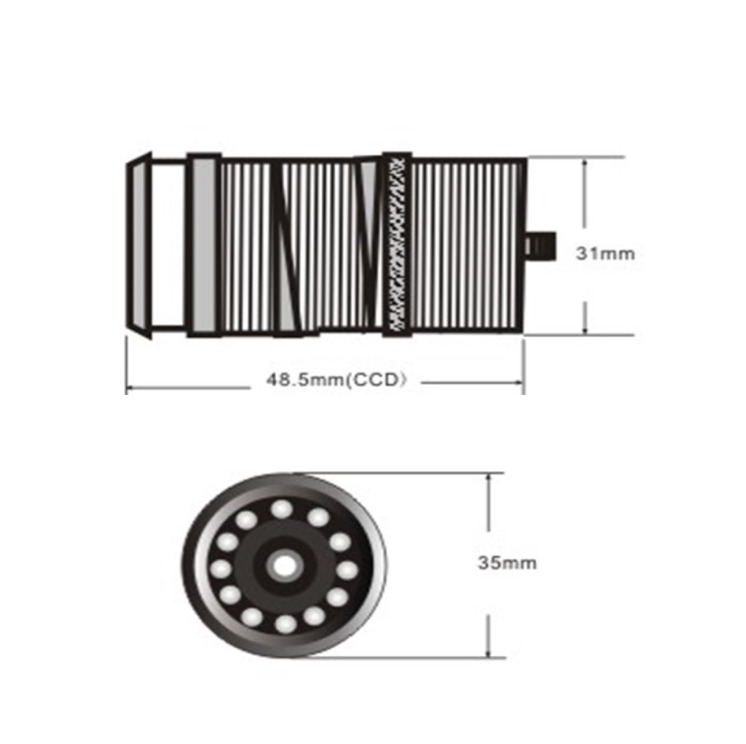

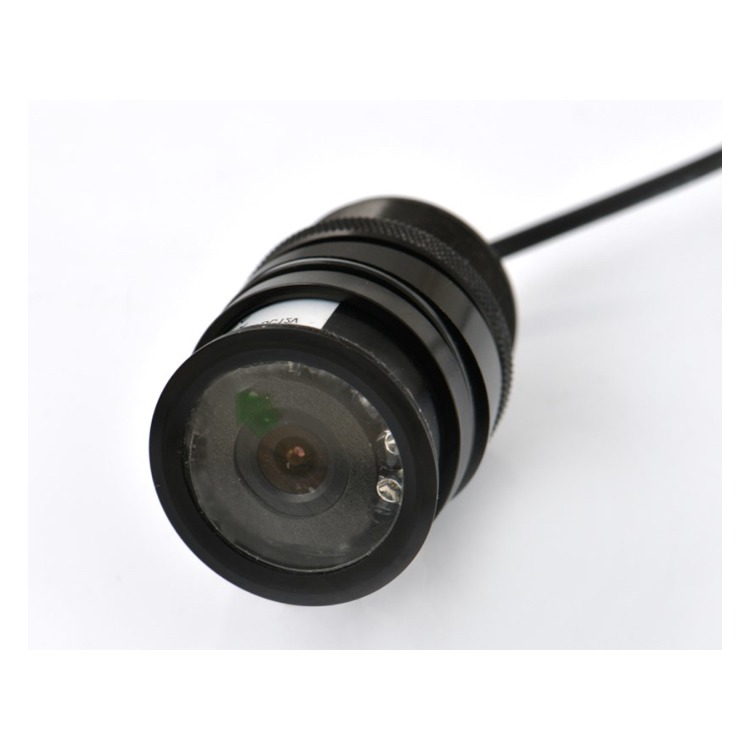

Embedded-type color rear-view camera • CVC-MC-E

Small embedded-type color camera
– Night vision through 9 infrared LED
–IR distance : 8 m
– TV System: PAL
– Efficient pixels: 728 x 488 pixels
– Sensing area : 4.6228 mm x 3.6112 mm
– Resolution : 500 TV lines
– Horizontal sync. frequency : 15.625KHz
– Vertical sync. frequency: 50Hz
– Minimum light : 0.1 Lux (day), 0 Lux (with IR)
– Microphone : no
– Video output  : 1.0Vp-p, 75Ohm
– Signal/noise ratio : > 48 dB
– White balance : automatic
– Electronic shutter : auto:1/50 (PAL)~1/1 00000 sec
– Backlight compensation : automatic
– Consumption : 140 mA
– Power supply : 12 V/DC
– Operating temperature: -20°C~70°C, TH 95% MAX °C
– Storage temperature :-40°C~80°C , TH 95% MAX °C
– Lens : : f=2.8 mm, F=2.0
– lens angle : 120°
– Waterproof resistance : IP 69K
