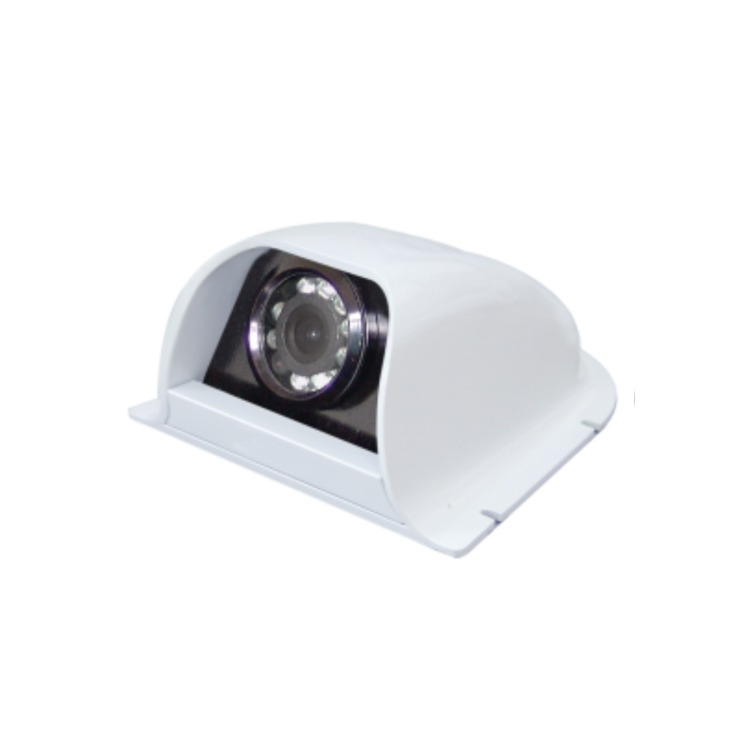

Side vision camera • C-CVC-CL

This side vision color camera is particularly adapted to vehicles such as long buses, coaches, heavy truck or trolleys. Comes in both CMOS and CCD versions.

SKU: C-CVC-CL Categories: ,

-Image device : 1/3″ color CMOS
-TV System : PAL/NTSC
-Effective Pixels : 728 x 488 pixels
-Sensing Area : 4.6228mm x 3.6112mm
-Resolution: 500 TV Lines
-Horizontal Sync. Frequency: 15.625KHz/15.734KHz
-Vertical Sync. Frequency:  50Hz/60Hz
-Minimum Illumination: 0.1 Lux (day), 0 Lux (with IR)
-Microphone: Optional
-Signal to noise ratio: Better than 48dB
-White balance : Auto
-Power Supply: DC12V
-Operating Temperature : -20℃~70℃ , RH 95% MAX
-Storage Temperature: -40℃~80 ℃, RH 95% MAX
-Lens Angle : 120°
