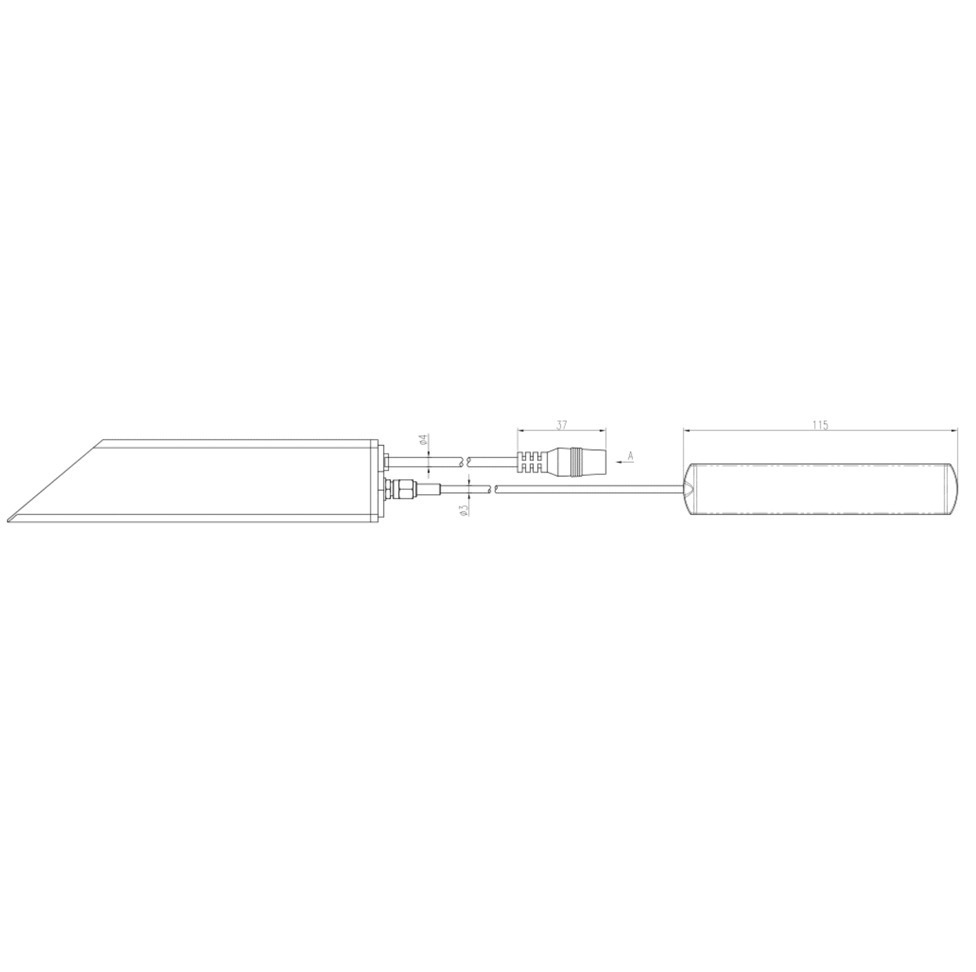

Wireless Forklift color camera • CVC-CHARWS
Wireless fork lift CMOS color camera specifically designed for installation on fork lifts. Magnetized brushed aluminium casing for easy installation. Waterproof IP69K.
– Effective pixels : 750 x 504
– Antenne: 1 m
– Maximum transmission range : 100m
– Fréquence de fonctionnement : 2400-2483.5MHz
– Power supply : 10-32 V/DC
– View angle : 45°
– Image : CMOS
– TV system : PAL / NTSC
– Sync. System: Internal
– Lens : f=6.0 mm
– Video output : 1.0Vp-p, 75 Ohm
– Gamma consumption : 0.45
– Balance : Auto
– Reception sensitivity : -89 dB
– Code vidéo : MPEG4
– Rate : PAL : 25fps, NTSC : 30fps
– Diffusion spectrum : FHSS
– Operating temperature: -20°C~70°C, RH 95% max.
– Storage temperature: -30°C~80°C, RH 95% max.
– Horizontal sync. frequency: 15.625 kHz / 15.734 kHz
– Vertical sync. frequency: 50Hz / 60Hz
